Step By Step How To Install Multi Tv Yourself

Multi TV installation guide

This post is for those that have chosen multi TV both in Ghana and Nigeria. Multi TV a Ghanaian based television which offers over 20 TV and radio channels in digital format. I’ll walk you through multi TV installation guide.

Multi TV being one the best digital satellite TV providers in Ghana and have its presence in Nigeria, meets all the entertainment, news and sports needs of its viewers. However, Multi TV hosts all the leading TV channel providers in Ghana, and do a good a job on Nigeria also. These includes the live streaming and broadcasting of events and news. Although, many people are not aware of the installation procedures of this renowned TV. Below is step by step Multi TV installation guide. What To Do When Dish Tv Says No Signal On Tv

Multi TV is a free-to-air television network based in Ghana and have presence in Nigeria. Having more than 20 television and radio channels (and counting), Multi TV provides a variety of entertainment, news and sports channels in digital format. Multi TV also offers the live streaming of news, events and videos from all the leading TV channel providers in Ghana. Below is the Multi TV installation guide.

Multi TV installation guide

Thus, Multi TV satellite direction is aligned to face the east. So, you must ensure your free tv satellite dish is facing the east during Multi TV installation. This is as a result of the signal coming from that direction. The following is a step-by-step guide for Multi TV installation.

Firstly, install the dish following the dish manual. The dish comes with a round plate, a dish cap, a stand, an LNB and an LNB holder, dish accessories.
. Assemble the dish, and then carefully fix the LNB in its holder at the last end of the angle bar. If you cant fix the dish yourself, contact a the dealer to fix it for you and then proceed with the installation.

. Mount the stand with the four holes at the rear end on a wall where you fixed fit. (The stand has eight holes all together. When fixing the stand, ensure not to bend or turn the stand at the wrong position. Hence, first hold the stand tightly with your hands as if mounting the dish. And then see if the dish is well fixed in a way that it can receive signal while facing the east direction. How To Install A Satellite Dish For Dstv, Mytv, Dish Tv, Dish tv.

You can use a multimeter to test the signal strength . After that, mount the stand on the wall).
. Use normal nails on a facial board and use concrete nails for a wall.
. fix the dish in a place where there are no obstruction e.g. tall buildings, planted trees, human object, thick electric cables etc.

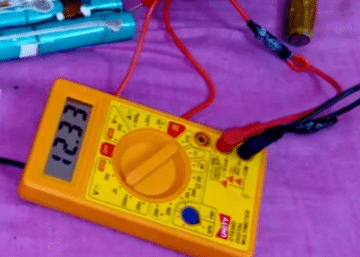

use a multimeter to test signal strength

. After mounting the dish, tighten it loosely to allow for adjusting and turning. The reason is that you may have to turn the dish vertically and horizontally until the signal shoots or flashes.

. Connect the coaxial cable from your dish to the receiver using the connecters.

. Connect it into the receiver’s LNB input.
. Power the receiver on.
After carefully completing the above procedures, the next step is to install the multi tv digital box. The following is the Multi TV installation guide for each different decoder.

Syndicated box decoder

. Press MENU.
. On INSTALLATION press OK.
. Select MANUAL SEARCH and press OK.
. Press green button on the remote to edit the frequency.
. Select MODIFY.
. Press OK.
. Input 12522
. Press OK.
. Select POLARIZATION.
. Press the RIGHT button on the OK to change to vertical.
. Press OK.
. Then select SYMBOL RATE 27000
. Press on the BLUE BUTTON to save and exit OK to start scanning.
. Move channel down knob to start search.
. Press OK to start scanning.
. Press exit. How To Fix Dstv / Gotv Account Has Been Suspended

Strong box decoder

. Press MENU.
. Press on the RIGHT volume button.
. Input 0000 as password.
. Select MANUAL SCAN and press OK.
. Press RED BUTTON on the remote to select transponder ASTRA 3A/3B.
. Press GREEN BUTTON to add TP list.
. Input frequency 12522
. Go to symbol rate and input 27000
. Change the polarization to either V or H to make the bars change to green color.
. Press OK to scan.
. Exit.

Somotex ash box decoder

. Press MENU.
. Select INSTALLATION.
. Press the red button to EDIT.
. Input 12522 on the FREQUENCY.
. Press OK.
. Input 27000 on the SYMBOL RATE.
. Select POLARITY and press RIGHT button to select either Vertical or Horizontal.
. Select SAVE and press OK.
. Press on the BLUE button and OK to scan.
. Press OK on YES.
. Press EXIT to begin viewing channels.
Quality box decoder
. Press MENU.
. Scroll down to DVB-S, Click OK.
. Input 0000 and press OK.
. Select DISH SETTINGS.
. Click the YELLOW BUTTON on the remote to edit TP.
. Scroll down to SYMBOL RATE and key in 27000
. Scroll to YES and click OK.
. Scroll to SERVICE SEARCH, click OK.
. Scroll to START SCAN and click OK.
Strong box (SRT 4330) decoder
. Tune to a MULTI TV channel.
. Press MENU on the remote.
. Press OK and input 0000.
. Go to TRANSPONDER and select 28EASTRA 2A/2B/2F.

. Press the YELLOW button to edit.
. Input 12522 on FREQUENCY.

Go to SYMBOL RATE and input 27000.
. Press the RED button to scan and then press OK.
. Press OK to save.
. Press EXIT to leave menu and start watching.

Multi TV HD LI/ HD plus

. On your remote, press MENU button
. Select installation using addition volume button and then press OK.
. Use the Channel Down to scroll and select “MANUAL SEARCH” and use OK to choose
. Further scroll down and select FREQUENCY
. Enter a frequency number
. Next, move down and select the SYMBOL RATE
. Enter a symbol rate number
. On POLARIZATION, change it to (V) by using Volume up
. Now, start Scanning for channels
. When the scan is complete, go ahead and exit to view saved channels.
CA plus series 2/SC 101 S2/Multi TV HD

. Start the installation by selecting this option from the MENU
. Use Channel Up and Down to choose SETTINGS
. Use 0000 as the password to open
. Select Frequency using the CHANNEL UP and DOWN
. Press the YELLOW button
. Choose FREQUENCY by using CHANNEL UP/DOWN buttons
. Then enter the FREQUENCY NUMBER
. Move to SYMBOL RATE and enter the SYMBOL RATE NUMBER
. Change the POLARITY state to V by using the volume buttons
. Scroll down and select YES and press OK
. Find SERVICE SEARCH by scrolling and press OK
. Scroll then choose SEARCH MODE
. Change from AUTO to MANUAL using volume buttons

. Start searching/scanning.
. Then press EXIT
. Press Volume down to select YES and press OK to save
Digital combo decoder Vi/combo decoder T2/S2
. Start by pressing the MENU button.
. Use Volume Up to select INSTALLATION before proceeding to press OK.
. Use Channel UP and DOWN to help you choose SATELLITE SETUP and press OK
. Select MANUAL SEARCH, which you can access by scrolling using Channel Down
. Scroll and select FREQUENCY
. Enter a FREQUENCY NUMBER
. Proceed to select SYMBOL RATE
. Then enter a SYMBOL RATE number
. Change POLARIZATION to (V)
. Start scanning for channels
. When the search is complete, press EXIT

QC-XPLUS Series II/QC-XPLUS Series IV/QC 001 CD CAS

. Press MENU on the remote control and press the POSITIVE VOLUME KEY (>+) to select INSTALLATION
. Scroll up and down to highlight DVB-S and press OK
. Enter default password (0000) to open.
. Scroll up and down to highlight DISH SETTING and press OK
. Select or highlight FREQUENCY by using CHANNEL UP and DOWN KEY (ch-/ch+)
. Press the YELLOW KEY (edit tp) on the remote a page will open
. Select or highlight FREQUENCY by using CHANNEL UP and DOWN KEY (ch-/ch+) How To Fix Spectrum Tv No Signal On Channels

. Use the numbers on the remote control to enter the FREQUENCY NUMBER
. Scroll down to SYMBOL RATE and enter the SYMBOL RATE NUMBER
. Scroll down to POLARITY and change to V by using the POSITIVE VOLUME KEY (>+)
. Scroll down to select YES and press OK to save
. Scroll down to select SERVICE SEARCH and press OK a page will open
. Scroll up and down to highlight SEARCH MODE by using CHANNEL UP and DOWN KEY (ch-/ch+)

. Press POSITIVE VOLUME KEY >+ to change from AUTO to MANUAL
. Press CHANNEL UP and DOWN KEY to scroll to START SEARCH and press OK to scan.
. Press MENU or EXIT, a page will display
. Press NEGATIVE VOLUME KEY (-<) to select YES and press OK to save. SC – 007 CA/ SC001 CA/SC007 CA Plus . Press MENU on the remote control . Scroll up and down by using CHANNEL UP and DOWN KEy (ch+/ch-) to highlight INSTALLATION and press OK . Scroll up and down by using CHANNEL UP and DOWN KEY (ch-/ch+) to highlight MANUAL SEARCH and press OK . Scroll down by using the DOWN CHANNEL KEY (ch-) to highlight TP frequency . Press the GREEN BUTTON (TP edit) on the remote control . Use UP and DOWN KEY (ch-/cg+) to scroll up and down to highlight ADD or MODIFY and press OK . Scroll down to highlight TP frequency . Use the numbers on the remote control to input FREQUENCY number and press OK . Scroll down to highlight POLARIZATION and press POSITIVE VOLUME KEY (>+) to change to VERTICAL

. Scroll down to SYMBOL RATE and input the FREQUENCY NUMBER and press OK
. Press the BLUE BUTTON on the remote control to SAVE and EXIT
. Scroll down to START SEARCH and press OK to SCAN.
Somotex (MTV-1722)
. Scroll to INSTALLATION and select it
. Scroll to the MANUAL SCAN option and select it
. Under the Manual scan option select FREQUENCY
. Set the FREQUENCY at 12525
. Use 30000 as the SYMBOL RATE
. Set the POLARITY to vertical
. Press the GREEN BUTTON on the remote control to start CHANNEL SEARCH
. Press EXIT or OK to view

Somotex (MTV-9800J)

. Choose the MENU option
. Select INSTALLATION after scrolling
. Go ahead and choose SATELLITE LIST
. The next thing is to select ASTRA 2A, 2B, 2D on the satellite list
. Save by pressing EXIT
. Choose the TP list
. Press the GREEN BUTTON to add a new frequency
. Use 12525 as the Frequency
. Set the SYMBOL RATE at 30000
. Change the POLARITY to vertical
. Start scanning for channels by double clicking on the OK button
. Press the OK button to save your new settings
SRT 4920/4922/4922A/4922D+
. Start by pressing the MENU option
. Select INSTALLATION and use 0000 as the password

. Go for MANUAL SCAN.
. Press the RED BUTTON to choose 28.2 ASTRA 1N/2A/2F.
. Use CHANNEL DOWN button to select the FREQUENCY.
. Press the GREEN Key and enter 12525 as the MULTI TV FREQUENCY .
. Use CHANNEL DOWN button to select the SYMBOL RATE and then enter 30000
. Set Polarization to vertical
. Start scanning for channels
. Press EXIT button when done
SRT 4950/SRT 4950H/4950E/4950M/
. Begin by pressing MENU
. Choose INSTALLATION.
. Select the MANUAL SCAN option before pressing OK.
. Hit the SAT BUTTON and select ASTRA 2(28.2E)

.Press the RED BUTTON and enter 12525
. Use CHANNEL DOWN button to select POLARIZATION.
. Next, choose the VER option VOLUME RIGHT button
. Use CHANNEL DOWN button to choose the SYMBOL RATE and enter 30000
. Press OK again to TICK the inputted Multi TV parameters
. After step 9, the SIGNAL QUALITY bar will change to GREEN
. Start scanning
. Information will pop up requesting for NETWORK SEARCH and press OK
. When “SEARCH ONLY FTA CHANNELS?” pops up, press OK
. Lastly, press the EXIT button thrice

What to do when dish TV says no signal

How to get more channels on Multi TV

. Press MENU on your Multi TV remote control
. Select INSTALLATION
. Select EDIT SATELLITE
. Click on the YELLOW BUTTON to “Add” a new satellite. A new dialog box should appear titled “Add Satellite”.
. Fill the “Add Satellite” box using the information below and then select YES:
– Satellite: Astra 2B
– Longitude: 101 E
– Frequency: 12572
– Symbol Rate: 2854
– Polarization: V (Press the Right button to change the polarization from H to V)
6. Astra 2B should now appear in the list of Satellites under the EDIT SATELLITE menu.
7. Select Astra 2B and press OK.
8. Under EDIT TRANSPONDER, Press the YELLOW BUTTON and enter the following values each at a time:
Frequency Symbol Rate Polarization
12572 2854 V
12599 3250 V
12729 2725 V

9. Press EXIT twice.
10. Press Menu > Installation > Install Satellite > Green Button (Scan)
11. You should now see additional TV channels and Radio stations.

How to re-scan Multi Tv digibox

You can add new channels to your digibox by re scanning it, however, it wont necessarily add new frequency. The process is simple and easy for everyone who needs to do it. Follow steps 10, and 11 in the above section on how to get more channels on Multi TV.

Most recent strong satellite receivers on the market
Your satellite receiver will determine the number and quality of channels that you will have to enjoy. It is important for you to have the most recent strong satellite receiver so that you can enjoy quality entertainment.
– Somotex ash box decoder
– Strong SRT 4330
– QC-XPLUS Series II/QC-XPLUS Series IV/QC 001 CD CAS
– Somotex MTV-1722
– Somotex MTV-9800J
– SRT 4920/4922/4922A/4922D+
– SRT 4950/SRT 4950H/4950E/4950M

Using above information, you be able to install and start using your Multi TV satellite receiver in Ghana and Nigeria. Use the above tips to make choice of the right receiver both in terms of its features and durability. Often, latest receivers have the best capacity to receive the right waves and therefore, allow you to enjoy many channels.
