How to Connect Verizon Fios Cable Box to TV (2026 Guide)

To connect a Verizon Fios cable box to your TV, set up the Fios router first and wait for its light to turn solid white. Then run a coax cable from the box to a coax wall outlet, connect the box to your TV with an HDMI cable, and plug in the power. Turn on the TV, pick the right HDMI input, and follow the on screen steps with the Fios remote to activate the box.

This guide covers every current Fios box, including the Fios TV One, the Fios TV One Mini and older set top boxes from Motorola, Cisco and Arris. It also covers TVs without HDMI, pairing the remote, and what to do when the box will not work after setup.

What You Need to Connect a Fios Cable Box to TV

  • Your Fios TV box and its power cord.
  • A coax cable. It is the round cable with a screw on connector.
  • An HDMI cable. Verizon includes one with the Fios TV One, and it supports 4K.
  • The Fios remote. Newer boxes come with the Fios TV Voice Remote.
  • A working Fios router, set up and online.
  • A coax splitter, if the router and the TV box must share one coax outlet.

Which Verizon Fios Box Do You Have?

The steps change slightly with the box, so check the model first. The name is usually printed on the front, top or bottom of the box.

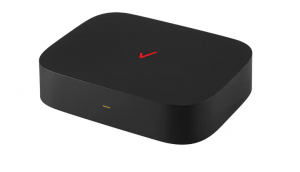

  • Fios TV One: the main box Verizon sends today. It connects with coax and HDMI and comes with a voice remote.
  • Fios TV One Mini: a smaller box for extra rooms. It works alongside a main Fios TV One and can connect with coax or WiFi.
  • Older set top boxes: models such as the Motorola QIP7232, the Cisco CHS 435 and the Arris VMS1100 media server. They use coax, HDMI and power, and some older TVs use the composite cables instead.
  • Digital Adapter: a small box for basic channels on an extra TV. It uses coax in and coax out, with no HDMI.

Verizon Fios box types and how each connects: TV One, TV One Mini, older set top box and Digital Adapter

Set Up the Verizon Fios Router First

The TV box gets its guide, channels and On Demand through the Fios router. If the router is not online, the box cannot activate. Skip this part if your router already works.

  1. Connect a coax cable from the coax port on the router to a coax wall outlet. Verizon says this link is required for Fios TV.
  2. If your home has an Ethernet outlet for Fios, connect an Ethernet cable from the router’s WAN port to it.
  3. Plug the router into power.
  4. Wait for the router to update. This can take up to 10 minutes, and the router may restart a few times.
  5. Carry on when the front light is solid white.
  6. Connect your phone to the WiFi using the network name and password printed on the router’s label.

Older guides tell you the WiFi name is “ESSID” and the password is “WPA2”. Those are only the labels for the fields. Your real network name and password are printed on the sticker on your router.

How to Connect Verizon Fios Cable Box to TV Step by Step

These steps are for the Fios TV One. They also work for most older set top boxes.

  1. Place the box near the TV. Keep it within reach of a coax outlet and a power socket, and leave space around it for air.
  2. Connect the coax cable. Screw one end into the coax port on the box and the other end into the coax wall outlet. Turn it until it is finger tight.
  3. Use a splitter if needed. If the router and the box need the same outlet, connect the splitter to the outlet first, then run one cable to the router and one to the box.
  4. Connect the HDMI cable. Plug one end into the HDMI port on the box and the other into a free HDMI port on the TV. Note the port number, such as HDMI 1 or HDMI 2.
  5. Plug in the power. Connect the power cord to the box and then to a wall socket.
  6. Turn on the TV and pick the input. Press the Input or Source button on the TV remote and choose the HDMI port you used.
  7. Follow the on screen steps. Use the Fios remote to activate the box and sync it to your Fios network. The box may download an update and restart, so leave it plugged in.
  8. Test a few channels. Change channels and open the guide to make sure everything works.

Connect Verizon Fios cable box to TV in 6 steps: router light, coax, HDMI, power, TV input, activate

How the Fios cable box connects to the TV

Think of it as two paths. The coax cable brings the TV signal from the wall to the box. Next, the HDMI cable carries the picture and sound from the box to the TV. Your router shares the same coax wiring, which is how the box reaches the internet for the guide and On Demand.

Fios wiring diagram: coax outlet to splitter, splitter to router and Fios TV One, then HDMI from the box to the TV

How to Set Up Fios TV One Mini on WiFi

The Fios TV One Mini can connect with coax or WiFi. Verizon says coax is the better choice when you have an outlet nearby, because a wired link is more stable.

  1. For a WiFi setup, do not connect the coax cable. Verizon says the Mini will sync with your Fios WiFi on its own.
  2. Connect the HDMI cable from the Mini to the TV.
  3. Plug in the power cord.
  4. Turn on the TV and the Mini, then follow the on screen steps with the voice remote.

If the picture freezes often on WiFi, the router may be too far away. Move the router to a more central spot, or use coax for that room.

How to Connect an Older Verizon Fios Cable Box to TV

Older boxes connect in almost the same way. Connect the coax from the box to the wall outlet, connect HDMI from the box to the TV, then plug in the power. Turn on the box and the TV, then follow the on screen steps with the Fios remote.

Verizon’s guide for older equipment points to activatemyfios.verizon.net to check your service or open the self install wizard. If your box was moved from another room or another home, you may need to call Verizon so they can link it to your account.

Connect a Fios Cable Box to a TV Without HDMI

Some older TVs have no HDMI port. You still have options.

  • Older set top boxes: use composite cables. Match the yellow, red and white plugs to the same colours on the box and the TV.
  • Fios TV One Mini: use the composite adapter that comes in the box.
  • Digital Adapter: connect coax from the wall to the adapter, then a second coax cable from the adapter to the TV. Set the TV to channel 3.

To activate a Digital Adapter, Verizon lists verizon.com/fiostv/selfinstall online, or 1 855 372 2181 by phone. Have the adapter’s serial number ready.

How to Pair the Fios Voice Remote

The voice remote normally pairs during setup. If it stops working afterwards, pair it again from the menu.

  1. Press Menu on the remote.
  2. Go to Settings, then Voice Control.
  3. Choose Fios Voice Remote, then Program Voice Remote.
  4. Select Manual Setup and follow the prompts.

If the remote does nothing at all, change the batteries first. To use voice search, hold the remote about 12 inches from your mouth, press the mic button and speak normally.

Verizon Fios Cable Box Not Working After Setup?

  1. No picture: check that the TV is on the right HDMI input, and push each cable in firmly.
  2. No channels or a sync message: check that the router light is solid white. The box cannot activate while the router is offline.
  3. Box sharing a splitter: make sure the cables go into the right splitter ports, and tighten every coax connector.
  4. Box stuck on an update: leave it plugged in. Pulling the power during an update can cause more problems.
  5. Still stuck: restart the box and the router, as shown below.
  6. Area problem: check for a Fios outage. Our guide on how to fix a Verizon Fios internet outage shows how to check.

How to restart a Verizon Fios set top box

Unplug the power cord from the back of the box, wait about 30 seconds, then plug it back in. Give it a few minutes to load the guide. If that does not help, restart the router the same way, wait for the solid white light, then restart the box again. A restart keeps your recordings and settings.

Verizon’s My Fios app also has setup help and answers to common questions, and verizon.com/installmyfios has extra help for self installs.

Returning Your Old Fios Equipment

If the new box replaces an old one, return the old equipment. Verizon’s setup guide says you can take it, with your order number, to a Verizon Fios return location or any UPS Store within 30 days. Verizon can charge for equipment that is not returned, so keep the receipt.

Common Questions

Do I need a coax outlet for a Fios cable box?

Yes for the Fios TV One and older set top boxes. Only the Fios TV One Mini can work over WiFi without coax.

Can I connect the Fios box to a second TV?

One box serves one TV. For another room, add a Fios TV One Mini or a second box. You can also watch on the Fios TV app on supported devices.

Why does my Fios box say it is not connected to the network?

The box cannot reach the Fios router. Check that the router light is solid white, then check the coax link between the router and the outlet, and the splitter if you use one.

How long does Fios box activation take?

The router can take up to 10 minutes to update. The box usually activates a few minutes after that, but an update can make it take longer.

If you are still choosing a provider, our Verizon Fios vs Spectrum comparison can help. Once your box works, you can also set up Netflix on your Fios cable box.

Get Your Fios Cable Box Working Today

To connect a Verizon Fios cable box to your TV, get the router online with a solid white light, connect the box with coax, HDMI and power, choose the right input on the TV, and follow the on screen activation. If anything goes wrong, check the cables and restart the box and router. For the official pictures of each port, see Verizon’s Fios TV One and router install guide.
