How to Install a Wireless Security Camera: Step by Step (2026)

To install a wireless security camera, first connect your phone to your router’s 2.4GHz WiFi, because most cameras cannot join 5GHz. Then set the camera up in its app beside the router, test the signal at the spot where you plan to mount it, and only then drill and fix it to the wall. Finish by changing the default password and turning on two step verification.

This guide walks through each step in order, from choosing the camera to fixing a camera that will not connect. It works for single cameras and for wireless CCTV kits with several cameras.

What You Need Before You Start

  • The wireless camera and its mounting kit (screws, wall plugs and bracket).
  • Your smartphone, with the camera maker’s app installed.
  • Your WiFi name and password.
  • A microSD card, if the camera records locally.
  • Tools for mounting: a drill, a screwdriver and a ladder.
  • A power socket nearby, unless the camera runs on a battery or solar panel.

Choosing the Right Wireless Camera

Three choices shape the whole install, so make them before you buy.

  • Power: plug in cameras never need charging but must sit near a socket. Battery cameras mount anywhere but need recharging every few months. Solar cameras charge themselves, which helps where power is unreliable.
  • Storage: cameras with a microSD slot save footage locally with no monthly fee. Cloud storage keeps footage safe if the camera is stolen, but usually costs a monthly fee and uses more data. Many cameras offer both.
  • Indoor or outdoor: outdoor cameras are weatherproof. Check for a rating such as IP65 or IP66 on the box. An indoor camera will not survive rain, even under a roof edge.

How to Install a Wireless Security Camera Step by Step

  1. Prepare your WiFi. Make sure your router has a 2.4GHz network, and connect your phone to it.
  2. Charge or power the camera. Fully charge a battery camera before setup.
  3. Install the app and create an account. Use the app named in the camera’s manual.
  4. Add the camera next to the router. In the app, tap Add Device and follow the prompts. Some cameras pair by scanning a QR code. Others ask you to join a temporary WiFi network created by the camera.
  5. Check the live view. Setup is only finished when you can see a live picture in the app.
  6. Test the signal at the mounting spot. Hold the powered camera where you plan to fix it for a few minutes and watch the live feed.
  7. Mount the camera. Mark the holes, drill, insert wall plugs, then screw the bracket firmly in place.
  8. Angle and secure it. Adjust the view, set up motion alerts, then change the default password and turn on two step verification.

Install wireless security camera in 8 steps: WiFi, power, app, pair by router, live view, test, mount, secure

Why Wireless Cameras Fail to Connect to WiFi

Most failed installs stop at the pairing step. The reason is almost always the WiFi band.

Nearly all home security cameras connect only to 2.4GHz WiFi. Makers choose it because 2.4GHz reaches further and passes through walls better than 5GHz. A camera on your gate does not need fast speed. It needs a signal that reaches.

Many modern routers use a feature called band steering, or Smart Connect, which gives the 2.4GHz and 5GHz networks one shared name. Your phone moves between them without you noticing, but the camera cannot. It looks for 2.4GHz, gets pushed towards 5GHz, and pairing fails.

Wireless security camera WiFi: 2.4GHz reaches further through walls, while 5GHz is faster but shorter range

How to fix the WiFi before setup

  1. Open your router’s app or admin page.
  2. Go to the wireless settings and turn off band steering or Smart Connect.
  3. Give the two bands different names, such as HomeWiFi_2G and HomeWiFi_5G.
  4. Set the security mode to WPA2, or to mixed WPA2 and WPA3. Many cameras cannot join a network set to WPA3 only.
  5. If your network name is hidden, show it while you set up the camera.
  6. Connect your phone to the 2.4GHz network, then start the camera setup.

If your password contains unusual symbols and pairing keeps failing, try a password with letters and numbers only during setup.

How to Install Wireless CCTV at Home

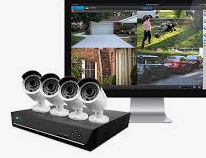

A wireless CCTV kit has several cameras and a recorder, often called an NVR. The steps are a little different from a single camera.

  1. Connect the NVR to your router with the network cable from the box.
  2. Connect the NVR to a TV or monitor with an HDMI cable, then switch it on.
  3. Plug in each camera near the NVR. In most kits, the cameras pair with the recorder by themselves. Follow the manual if a camera does not appear.
  4. Once every camera shows a picture, move each one to its mounting spot and check the picture on the monitor before drilling.
  5. Install the maker’s app on your phone and link it to the NVR to watch from anywhere.

Remember that wireless CCTV cameras still need power, so each camera needs a socket or a power cable nearby. Only the video travels without wires.

Where to Mount a Wireless Security Camera

  • Height: about 2.5 to 3 metres (8 to 10 feet) high. That is out of easy reach but still close enough to see faces.
  • Angle: point it at the area you care about, such as the gate, door or driveway, rather than the widest view.
  • Shelter: place outdoor cameras under a roof edge if you can, so rain does not blur the lens.
  • Light: avoid pointing the camera straight at the sun or bright lights, which wash out the picture.
  • Glass: never put a camera behind a window. Its night vision infrared light reflects off the glass, so you see nothing after dark.
  • Visible: a camera people can see helps put off thieves in the first place.

Where to mount a wireless security camera: 2.5 to 3 metres high, under shelter, angled at the entry, not behind glass

Test the signal before you drill

Carry the powered camera to the exact spot and leave it there for a few minutes. If the live feed freezes or the app says the camera is offline, the signal is too weak. Move the camera closer to the router, or add a WiFi extender or mesh node that supports 2.4GHz. Setting the router’s 2.4GHz channel to 1, 6 or 11 can also help, because those channels do not overlap. Our guide on installing a long range WiFi antenna helps for cameras far from the house.

Do not switch a struggling outdoor camera to 5GHz. It reaches shorter distances, so the signal usually gets worse.

How to Secure Your Wireless Camera

  1. Change the default password straight away, and use a long password you do not use anywhere else.
  2. Turn on two step verification in the camera app if it is offered.
  3. Update the firmware from the app every few months, because updates fix security holes.
  4. Use a guest network for cameras if your router has one, so a hacked camera cannot reach your phones and laptops.

Keeping Cameras Recording During Power Cuts

A camera without power records nothing. The router matters too, because without it the camera cannot upload to the cloud or send alerts.

  • Choose a camera with a microSD card, so it keeps recording locally even when the internet is down.
  • Put the router and plug in cameras on a small UPS for short outages.
  • Use battery or solar cameras where power cuts are common.

If power is unreliable in your area, our guide on building a reliable solar power system explains how to keep cameras and your router running.

Privacy and Your Neighbours

Point cameras at your own property, such as your gate, doors and compound. Avoid angling them into a neighbour’s windows or yard. In Nigeria, the Nigeria Data Protection Act can apply to footage of people who can be identified, and many countries and US states have rules on recording audio. Check the rules where you live, and consider a sign saying that cameras are in use.

Wireless Security Camera Not Connecting? Try This

  1. Confirm your phone and the camera are both on the 2.4GHz network.
  2. Check that the router is not set to WPA3 only.
  3. Move the camera within a metre of the router and try again. If it works there, the problem is range.
  4. Try the guest network once. If the camera joins it straight away, a setting on your main network is blocking it, such as AP isolation or MAC address filtering.
  5. If the camera worked before and suddenly stopped, check what changed, such as a new router, a new password or a router update.
  6. Reset the camera to factory settings, delete it from the app, and add it again.

If other devices also struggle with WiFi, see our guide on fixing network connection issues.

Common Questions

Do wireless security cameras need internet?

They need WiFi for setup, live viewing on your phone and cloud recording. Many can still record to a microSD card when the internet is down.

Can a wireless camera work without electricity?

Only battery or solar cameras. Plug in cameras stop when the power goes off, unless they are on a UPS.

How far can a wireless camera be from the router?

It depends on walls and interference. Always test the live feed at the mounting spot before drilling, and add an extender if the picture drops.

Why does my camera only see 2.4GHz WiFi?

Most security cameras are built for 2.4GHz because it reaches further and passes through walls better than 5GHz.

Install Your Wireless Security Camera the Right Way

To install a wireless security camera without trouble, sort out the 2.4GHz WiFi first, set the camera up beside the router, test the signal where you will mount it, then drill and secure it with a new password. For more help with pairing problems across different brands, see camera maker Reolink’s guide to fixing WiFi camera connection problems.
