Step by step how to fix gotv antenna

How to fix gotv antenna

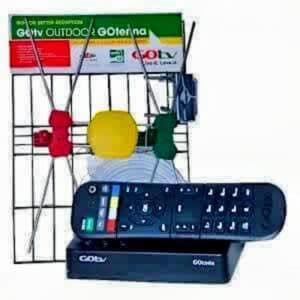

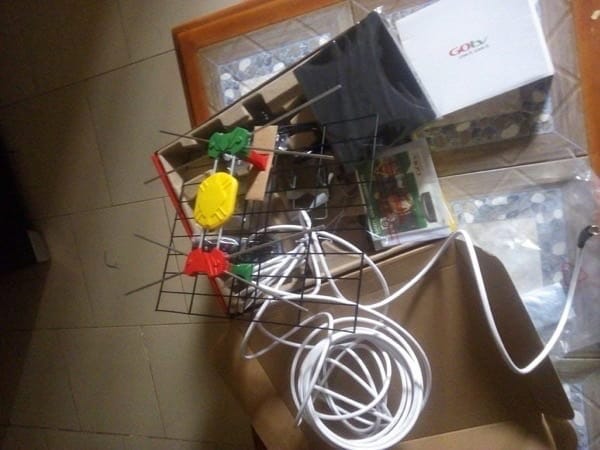

This is what the GOtenna looks like straight out of the box.

Intro
1

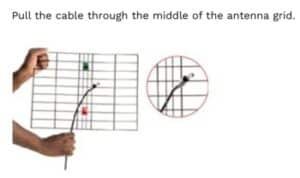

Pull the cable through the middle of the antenna grid.

Step 1
2

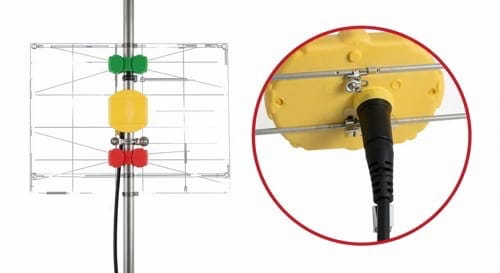

Screw the cable onto the yellow plastic box of the antenna.

Step 2
3

When secured, slide over the waterproof sleeve.

Step 3
4

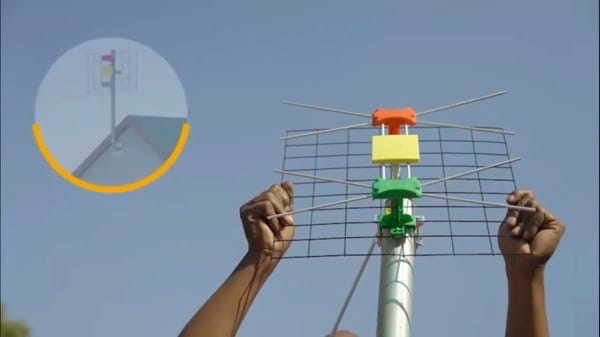

Clip the green plastic box and the red plastic box on the antenna into the green plastic clip and the red plastic clip on the antenna grid, until they click. (Green connects to green and red connects with red.)

Step 4
5

Place the U bracket through the middle of the antenna.

Step 5
6

Place the first pole bracket over the U bracket with the flat side against the GOtenna grid.

Step 6
7

Place the outward facing pole bracket attached to the GOtenna grid against an upright pole. Make sure that the down arrow on the yellow box is pointing down and then fasten the second pole bracket around the pole using the wing nuts provided.

Step 7
8

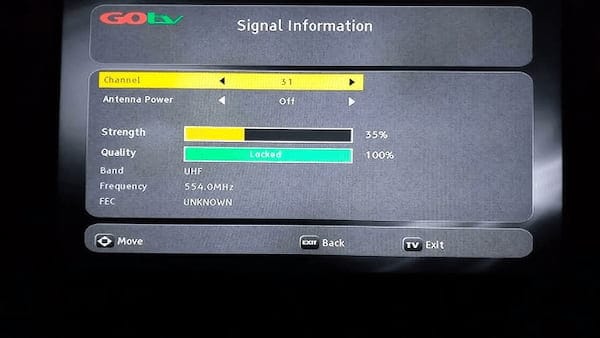

Find a clear site that has no obstructions between the GOtenna and the signal transmitter. Point the GOtenna towards the transmitter. Slowly move your GOtenna to the left or the right until the strongest signal is found. You will be able to see this on the signal lever bar displayed on your TV. Then fix your GOtenna in its position.

Step 8





read also>>Required materials to construct a reliable solarpowersystem



How to install gotv

1

Connect your decoder to the TV using the Audio and Video (AV) cables provided.

Step 1
2

Connect the GOtenna to the RF IN plug on the decoder. if you have an HDMI cable, connect it instead.

Step 2
3

Connect the power supply unit to the decoder before inserting the other end into the plug point. Then switch on at the wall (GOtv recommends the use of a power surge protector).

Step 3
4

Switch the TV on and press the AV button on the TV remote control to go to the appropriate AV channel. After 20 seconds the GOtv logo will appear, followed by the set-up screen a few seconds later.

Step 5

Note: If the GOtv decoder does no longer whole scanning, it’s going to robotically take you to the signal detection display. At this point you can want to point the GOtenna within the direction of the GOtv transmitter – and flow the GOtenna till the sign is strongest. This is the factor wherein you need to completely fix your GOtenna.

Once you see the GOchannel your decoder is prepared for activation.

‘how to connect two television set to 1 antenna’

This publish is ready a way to connect television sets to a Gotv or the same old Dstv decoder. Sometimes conditions stand up whilst you personal extra gadgets than your tv ports allow. Take as an example the LG 22LN4130 LED television; it simplest has one input alternative for connecting a DVD participant/Decoder/Play station. Which one do you use and which one do you omit? The solution lies on this submit; you can use the Gotv decoder RF Out port on the tv and unfastened up the alternative RCA Port for the DVD player or Play station.

There may be also every other situation that calls for you to connect two television units to at least one Gotv or the usual Dstv decoder.

That is what you want for the installation:

An adequate duration coaxial cable
Two F – kind connectors
One F type girl plug to television pal Male Coaxial RF connectorconnector

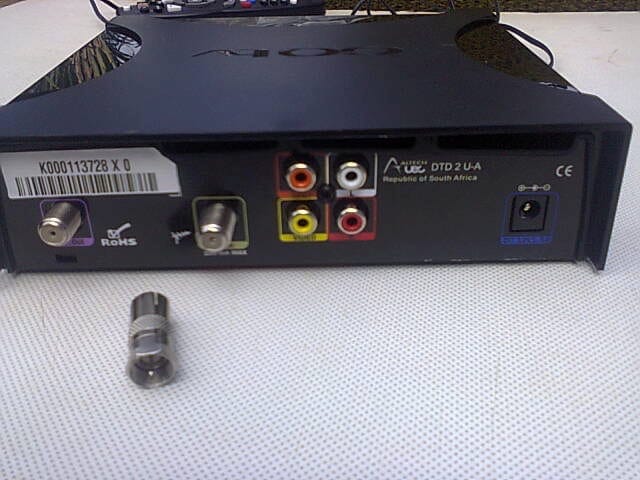

The photo below indicates the above mentioned three gadgets. I’ve used a Gotv decoder for instance however this could additionally paintings for a Dstv decoder too.

Join the two F type connectors to the ends of the coaxial cable.

Secondly join the F kind lady plug to tv buddy Male Coaxial RF connector to at least one side of the already inserted F kind connector.

Connect one aspect of the F kind connector to the port classified as RF OUT port at the Gotv decoder.

The other aspect of the cable have to be inserted into the RF IN port /Antenna connector behind the television set.

This is a picture  just like what you will build.

Switch on both the television and Decoder.

Relying on the version of your television set, scan for the channels once more.

The Gotv sign must appear as one of the channels at the cease. It‘s just any other analogue channel on your tv.

Your task is whole; you may join the second television to the RCA ports at the decoder. Or in keeping with the purpose you are studying this, you have just freed one port in your tv.

What does strength Antenna imply on the Gotv decoder?

Electricity Antenna actually means the antenna you may join is an active antenna. An energetic antenna is an antenna that amplifies the obtained electromagnetic waves. It does so by means of using digital circuit boards which might be fed with the aid of strength directly from your own home strength supply. These are very commonplace aerials nowadays, you may word one by noticing the energy deliver inside the residence that is related to the Aerial coaxial cable that is in flip connected to the lower back of your tv set or decoder.

If you aren’t the use of the electricity antenna, then simply flip off this selection the usage of your far off manage.

This is what you need for the installation:

  • An ample length coaxial cable
  • Two F – Type connectors
  • One F Type Female plug to TV PAL Male Coaxial RF connectorconnector

The image below shows the above mentioned 3 items. I have used a Gotv decoder for illustration but this will also work for a Dstv decoder too.

f-type-connector-with-astel-cable

Connect the two F Type connectors to the ends of the coaxial cable.

Secondly connect the F Type Female plug to TV PAL Male Coaxial RF connector to one side of the already inserted F Type connector.

Connect one side of the F type connector to the port labeled as RF OUT port on the Gotv decoder.

The other side of the cable should be inserted into the RF IN port /Antenna connector at the back of the TV set.

This is a photo  similar to what you will build.

finished-f-type-to-rf-connector-cable

read also>>Best forex broker 2018

Turn ON both the TV and Decoder.

Depending on the model of your tv set, test for the channels again.

The Gotv sign should seem as one of the channels on the give up. It‘s just any other analogue channel for your tv.

Your process is whole; you could join the second tv to the RCA ports on the decoder. Or in step with the cause you are reading this, you have got just freed one port in your tv.

What does strength Antenna mean on the Gotv decoder?

Energy Antenna honestly way the antenna you may join is an active antenna. An active antenna is an antenna that amplifies the obtained electromagnetic waves. It does so through the use of electronic circuit forums which might be fed by way of power instantly from your private home electricity source. These are very common aerials nowadays, you may note one by way of noticing the energy supply within the house that is related to the Aerial coaxial cable this is in turn linked to the again of your tv set or decoder.

In case you aren’t the use of the electricity antenna, then just turn off this option using your remote manage.
