DISH NETWORK INSTALLATION GUIDE – DISH Pro or DISH Pro Plus

Dish network logo

While all DISH Network satellite receivers are often connected to the DISH 1000.2, the subsequent models
may not detect and can not support the 129°W location: 1000, 2000, 3000, 4000, 5000, JVC-DVHS (IRR),
and the DishPlayer 7100/7200.
This instalment supports Legacy receivers, but there must be a minimum of one DISH Pro or DISH Pro Plus
receiver within the installation. Legacy receivers are receivers which don’t have the DISH Pro or DISH Pro
Plus logo (shown below) for a perfect dish network installation. STEP BY STEP HOW TO INSTALL DSTV DISH

The DISH Pro Plus 1000.2 LNBF provides reception from the 110°W, 119°W, and 129°W orbital locations, and provides an LNBF input port to receive programming from another satellite. the subsequent LNBF types are often connected to the LNBF input port: DISH Pro Single, DISH Pro Dual, or DISH Network bandstacked LNBFs.

The LNBF assembly supports connection of up to 3 satellite receivers in any of the subsequent
combinations:

• Single-cable connection to DISH Pro Plus (dual-tuner) receivers, when each input is used with a DISH Pro Plus Separator.
• Single-cable connection to DISH Pro receivers.
• Single-cable connection to a Legacy receiver as long as a DISH Pro or DISH Pro Plus receiver Is as well connected and powered within the least times. No DISH Pro Adapter is required. How to reset laptop password on windows 10

DISH Pro Plus receiver

dish network installation

1. Find Azimuth/Elevation/Skew angles for your location
2. Find a location for the dish with a transparent line of sight and a sturdy mounting surface
3. Mount the mast, ensuring it’s absolutely vertical
4. Assemble the dish , setting the skew and elevation angles within the process. Use additional skew bolts for skew angles greater than 110 or but 70
5. Mount the dish on the mast and point the dish to the azimuth angle
6. Run cables between the dish and therefore the receiver(s), leaving a service loop round the Mast Clamp

7. employing a peaking meter attached to the DPP 1000.2 LNBF PORT 1, peak the dish on 119°W using transponder 11 or higher for max strength. Tighten all bolts (see Table 1) and re-confirm maximum signal
Note: The 1000.2 Three-LNBF Bracket with three DP Dual (or DP Single) LNBFs are often utilized in place of the Integrated Adapter Bracket and DPP 1000.2 LNBFInstalling a satellite dish using a TV spectrum analyzer

8. Connect the receiver cable(s) to the DPP 1000.2 LNBF PORT 1 (and PORT 2 and PORT 3, as necessary) and receiver. Some restrictions apply when connecting Legacy receivers.

9. Run Check Switch test and ensure 110°W, 119°W, and 129°W reception
10. Take a software download, if you didn’t already
11. Run a Check Switch test and ensure 110ºW, 119ºW, 129° reception
12. Install additional receiver(s), if necessary
13. If applicable, connect a second satellite dish to the DPP 1000.2 LNBF’s LNB IN port

Assembling and Mounting the Dish (DISH Pro or DISH Pro)

Follow these instructions to assemble the satellite dish, mount it, and point it within the direction of the
satellites.

Using the azimuth and elevation angles, find a location for the satellite dish where it are often pointed towards the satellites located at these angles. confirm nothing blocks the road of sight between the dish and therefore the satellites.

Mount the mast to a solid surface in order that the dish cannot move or be bumped out of alignment. confine mind that physical and environmental conditions can block your satellite dish’s ability to receive a transparent satellite signal. Never mount to a tree or a utility pole.

Align the highest a part of the mast in order that it’s absolutely vertical. If the highest a part of the mast is off vertical by only a couple of degrees, it’ll be difficult or even even impossible for you to seek out the satellites. Take a minimum of two readings with A level , on the upper mast, that are 90 degrees aside from each other .

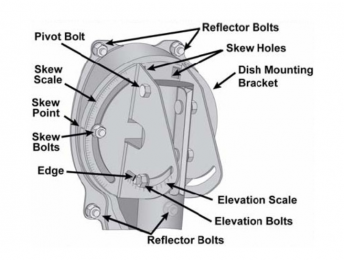

Loosen both skew bolts and set the skew by rotating the dish mounting bracket to align the mark with the specified angle on the skew scale which you wrote above. Tighten the skew bolts securely. See Table 1 for the specified torque values. After the skew is about , don’t attempt to finetune the skew angle when aiming the dish. How To Add Satellite To Free to air Receiver & watch tv free

Note: If your skew angle is at the acute ends of the size (greater than 110 or but 70),
insert nuts and bolts from the hardware pack into the extra skew holes. These additional
skew holes provide greater stability to the dish at these extreme angles. See Figure 2.

Installing the Receivers

Use the steps below while pertaining to Figure 1.

Run RG-6 coaxial cables from the DISH 1000.2 antenna to the receiver location(s) using the subsequent cable requirements. Grounding, other devices, and in-home cabling must also meet these requirements.
RG-6 coax rated for a minimum of 950 to 2150 MHz must be utilized in this installation. don’t use existing cables like RG-59 because it may cause signal loss.

Also, make certain that any outdoor connections are made using waterproof F-connectors rated for 2150 MHz or greater.

The length of the RG-6 cable from any receiver and farthest dish connected within the system must not be longer than:
– 200 feet for DISH Pro or DISH Pro Plus receivers.

– 100 feet for Legacy receivers.
The cable between the DISH 1000.2 and a connected compatible LNBF must be 80 feet or less.
-The cable’s center conductor must not extend past the rim of the F-connector quite the thickness of a nickel.
-Tighten all outdoor cable connections up to the torque values recommended by the manufacturer to make sure seal against moisture. Damage caused by over-tightening isn’t covered by the limited warranty. Tighten all indoor coax connections to the receiver only by hand. If you employ a wrench, you’ll over-tighten the connections and damage your equipment.

Connect a short lived cable to a peaking meter. Thread the opposite end of the cable through the LNBF arm and bracket. Connect the temporary cable to PORT 1 of the DPP 1000.2 LNBF and fasten the LNBF to the bracket with two screws. If using the Three-LNBF bracket and three DP Dual (or DP Single) LNBFs, connect the temporary cable from the peaking meter to the 119°W (center) LNBF. Attach the LNBFs to the bracket using the included screws.

– Note: If the peaking meter doesn’t produce a minimum of 600 mA to power the DPP 1000.2 LNBF, connect PORT 2 of the LNBF to the SATELLITE IN port of a powered receiver, or temporarily connect the Three-LNBF bracket with a Dual or Single LNBF for peaking on 119°W.

Peak the dish for the strongest possible signal on the 119°W satellite signal using the azimuth and elevation settings you wrote on page 3. don’t adjust the skew.
– Note: If you can’t find the 119°W signal, try adjusting the elevation up or down one or two degrees. make sure you are peaking the dish using transponder 11 or higher.

With the peaking meter still connected, tighten the mast clamp and elevation bolts using the torque values listed in Table 1 on page 6. Re-confirm signal strength after tightening the bolts.

Remove the temporary cable used for peaking the dish. Thread the cable(s) from the receiver(s) through the LNBF arm and bracket. Connect these cables to PORT 1, PORT 2 and PORT 3, as applicable.
– Note: If using the Three-LNBF Bracket with DP Dual (or DP Single) LNBFs, ask the section
Connecting to a turn on page 9 and therefore the switch’s installation instructions for extra details.

Connect a cable from DPP 1000.2 LNBF PORT 1 (or PORT 2 or PORT 3) to a DISH Pro or DISH Pro Plus (dual-tuner) satellite receiver’s SATELLITE IN connection(s). If a Legacy receiver is present, it should be installed last.
To connect DISH Pro Plus (dual-tuner) receivers with one cable, install a DISH Pro Plus Separator as follows:

a. Connect a cable from the DPP 1000.2 LNBF output (PORT 1, PORT 2, or PORT 3) to the DISH Pro Plus Separator Input.
b. Connect cables between the receiver’s SATELLITE IN 1 and SATELLITE IN 2 to SATELLITE IN 1 and SATELLITE IN 2 respectively on the DISH Pro Plus Separator.

– you want to use a DISH Pro Plus Separator during a single-cable/dualtuner receiver installation. A splitter or other device won’t add this configuration.
– Tighten all indoor coax connections to the receiver only by hand. If you employ a wrench, you’ll over-tighten the connections and damage your equipment
Connect the receiver(s) to the TV(s) and display the purpose Dish screen (if not shown, for most
receivers, press MENU-6-1-1 on the remote control).

From the purpose Dish screen, run Check Switch. On Legacy receiver models 2800, 3900, 4900, and 6000, select the SuperDISH Installation-3Sat option before running the Check Switch test. On all other Legacy models, select Test. When the Check Switch procedure finishes, you ought to see an Installation Summary screen almost like those shown below. confirm the summary screen shows reception from the 119°W, 110°W, and 129°W satellites on all available satellite tuners. Also confirm the LNBF is correctly identified as a DPP 1000.2 (factory software on some models may identify this LNBF as a DPP Twin or DPP Triple, which is OK). Legacy receivers will identify the LNBF as SW64.

– Note: On some models, you would possibly not see signal from 129°W until after you’re taking a software
download and run a Check Switch in steps 10 and 11. Legacy receiver models 1000, 2000, 3000,
4000, 5000, 7100, 7200, and JVC-DVHS (IRR) might not detect and can not support the 129°W
location.

No- te: If you’re using the Three-LNBF Bracket, your Installation Summary screen will vary
depending on the connected switch. confirm the summary screen shows reception from the
119°W, 110°W, and 129°W satellites on all available satellite tuners. CABLE ONE packages, tech support, cable one bill pay

Exit the Installation Summary screen to display the purpose Dish/Signal screen. confirm the signal strength bar is green and locked for the 119°W, 110°W, and 129°W satellites.
– Note: you would possibly not see signal from 129°W until after you’re taking a software download and run a Check Switch in steps 10 and 11.

Exit the purpose Dish/Signal screen and follow the on-screen instructions for taking a receiver software download. don’t disturb the receiver during the method of downloading software. If exiting the purpose Dish screen doesn’t start the download process, close up the receiver for a minimum of 20 minutes (on most receivers) to permit the receiver to require a software download.

Run Check Switch again and ensure reception for all three satellites on all available satellite tuners. Your dish network Installation Summary screen should be almost like those shown above in step 8. Some software on some models may identify the DPP 1000.2 LNBF as a DPP 1K.2. This identification is OK. How to Align a Satellite Dish Without a Meter: Dstv, DirecTV

If installing a further receiver, follow steps 6-11. confirm the summary screen shows reception from the 110°W, 119°W, and 129°W satellites. confine mind that a DISH Pro or DISH Pro Plus receiver must remain connected and powered in the least times to power the DPP 1000.2 LNBF. Read more
